Mobile containerised energy supply and storage Battery PowerPac

Battery Energy Storage System – BESS

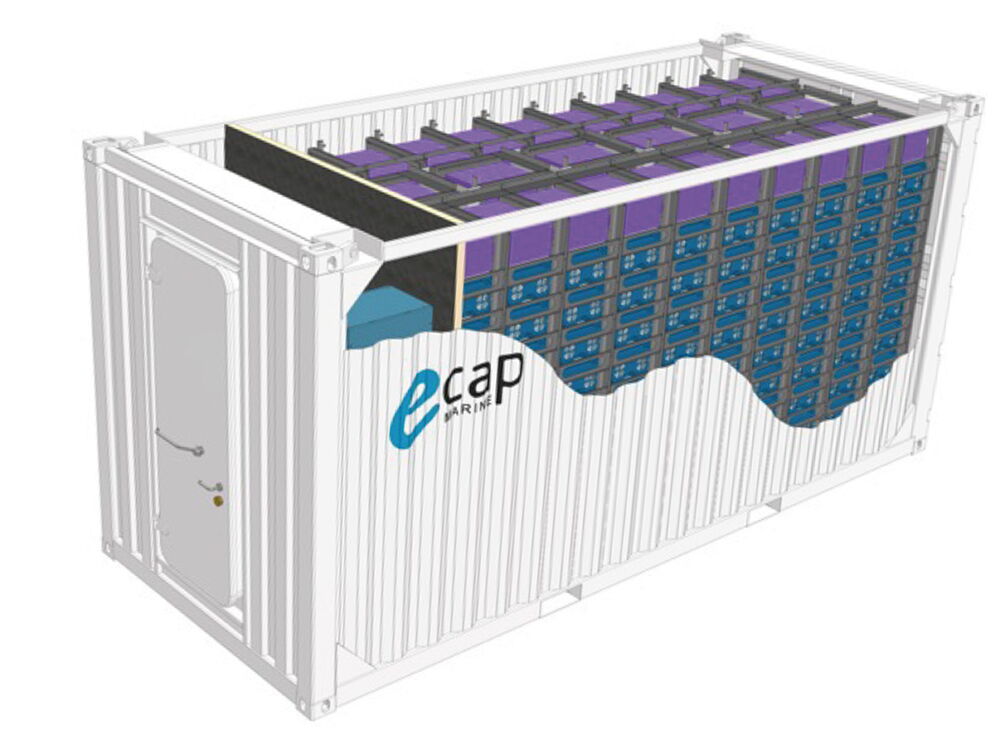

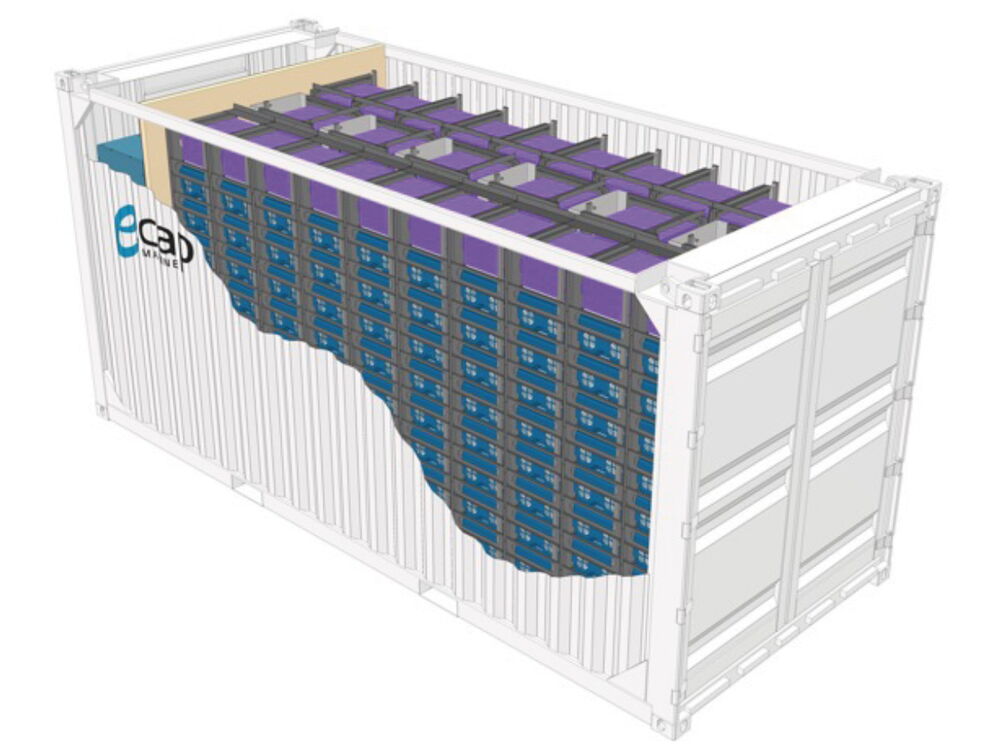

Together with our partner Lehmann Marine, a leading supplier of safe and compact maritime battery systems, we have jointly developed the eCap Battery PowerPac for the maritime industry. This containerised and mobile Battery Energy Storage System (BESS) serves as a flexible and scalable power supply solution on board or in port.  The system features a battery setup by Lehmann Marine with electrical components to provide either DC or AC output, depending on operational needs.

Clean, scalable power for maritime applications

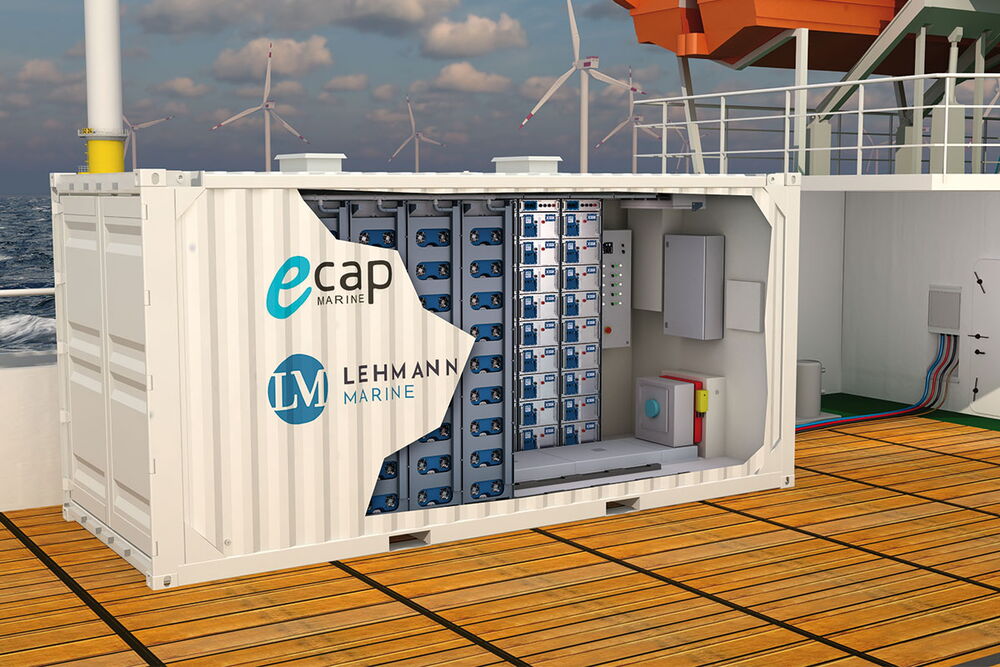

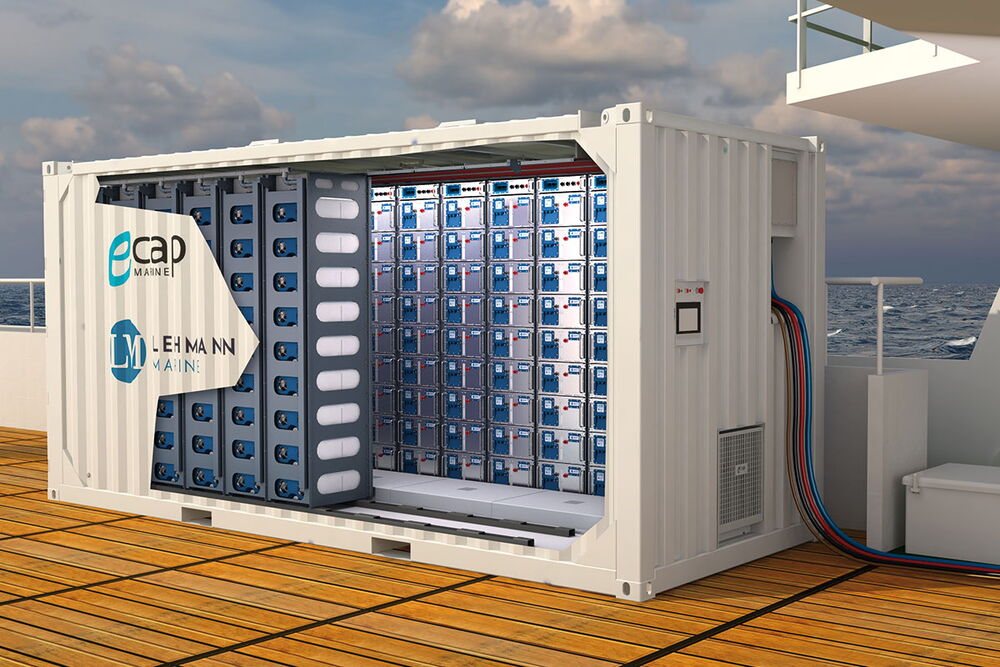

Our solution offers scalable capacity tailored to your application needs, with flexible configurations available as battery-only, hybrid (battery plus fuel cell), or as a high-power charger for ports. Designed as a mobile, containerised plug-and-play system, it enables fast installation on board, significantly reducing off-hire time. Built with maritime-certified components, it provides a zero-emission power source supported by an integrated safety and power management system for reliable, efficient performance.

Versatile applications for every maritime need

Our solution is designed to support a wide range of maritime operations. It can serve as a reliable emergency power source during maintenance or unexpected outages, or as a swappable battery system for vessels operating on tight schedules. The containerised design makes it easy to extend machinery rooms and seamlessly integrate additional capacity. Reducing diesel generator usage in port and on the last mile into port areas helps lower emissions while improving efficiency. It also enables peak shaving and provides spinning reserve while transiting in channels or operating in DP mode. Additionally, it functions as a fast charging station for electric and hybrid vessels in ports, ensuring smooth, sustainable operations across the maritime sector.

Technical specifications

  • Container sizes: 10ft / 20ft / 40ft / 45ft ISO
  • Battery type: maritime-certified Lithium Ferro-Phosphate (LFP)
  • Capacity range: 200 - 2,000+ kWh
  • Voltage output: 400-1,000 V DC / 400, 440 or 690V AC (50 / 60Hz)
  • Safety systems: to be integrated in ships alarm system
  • Certifications: compliant with maritime rules and regulations
  • Monitoring: integrated BMS with optional remote access



Example setups

DC Design

AC Design

Capacity

2,250 kWh

1,575 kWh

Voltage output

nom. 691 V DC

690 V AC (50 / 60Hz)

Max. cont. power output

700 kW

1,000 kW

Dimension (LxBxH)

6,058 x 2,438 x 2,896 mm

6,058 x 2,438 x 2,896 mm

Weight

about 24 t

about 20 t

Cooling

passive

active water & air cooling

Heading to ZERO-Emission with eCap Marine
